Booster Pump Automatic Kit Listing
This solar pool heating kit includes a booster pump controller, it suits pools that don't have independent solar suction and return ports installed and need to run their solar through the filter plumbing.
What makes these Performance+ panels so good?
See the OverviewWhat's Included in This Listing
For every automatic system purchased

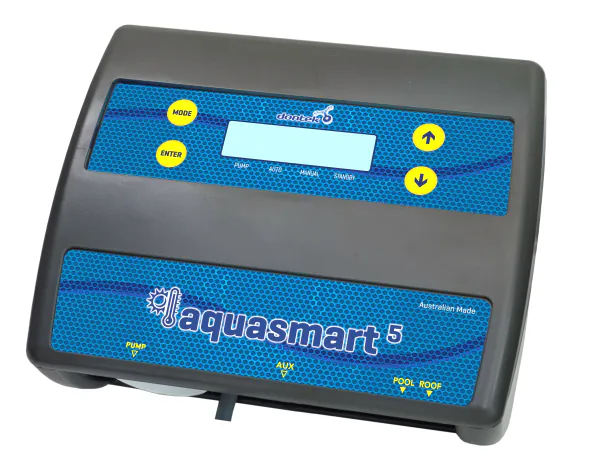

- 1 x Dontek AquaSmart 5CD booster pump controller
- 40mm hose to 32mm PVC glue socket adapters
- Fast opening vacuum release valve and pressure gauge
- Comprehensive installation manual (download)
- Warranty from an Australian company
- Unlimited phone technical support
For every OKU panel purchased
- Reinforced silicon joiner set
- All stainless steel band clamp set
- PVC coated 316 stainless steel strap set
- Stainless steel perforated band set
What You'll Need for an Install
- Solar booster pump (0.3hp, 0.5hp or 0.75hp) - size your pump here
- A filter line section that you can tee into after the filter canister
- Aluminium angle to mount collectors
- Solar roof hooks (for tiles; contact us for sizing)
- Assorted PVC pipe and fittings
- Installation dependent small bits (see manual)
Dontek AquaSmart 5CD Controller Specifications
- Current detection senses the main filter pump, so the booster pump can never run without it
- Powers the chlorinator connected to the main filter pump
- Sophisticated pump control combined with simple user operation
- Adjustable temperature differential
- Settings are retained after a power outage
- Automatic, manual timer, winter and tropical modes
- Self-diagnostic system and anti-freeze function
- 3 Year Warranty
- Australian Made by Dontek
Warranty
EcoOnline™ offers the following warranties on system components:
- 35 year return to base limited warranty on OKU collectors
- 3 year Dontek controller warranty
See Terms and Conditions page for further details.
For more information the manual can be downloaded from our EcoOnline download page.
Add to your order
Available Extras
Installing on a tile roof? Ask us to size the number of solar roof hooks required.
Planning on installing rows longer than 12 OKU panels? You'll need expansion joiners to limit the contraction collectors experience overnight.
Installing an odd number of rows? You'll need an add-on panel to finish the array.
Need Wind Category B & C fixings? You can find them here.
Got a skylight you can't cover and need to bridge a row? Buy 4 barbs and two extra joiner sets to create a bridge using 32mm PVC line.
Need an extra non-return valve or 3-way valve? Find them here.
Before you buy
Roof Mounting
Please make sure you have a plan for mounting. Panels are strapped down around their 40mm header pipes to aluminium channels (not supplied) top and bottom using the 6 supplied 316 stainless metal straps. The aluminium channels on metal roofs need to be fixed down by screwing through into battens or rafters. Tile installations are more involved using solar roof hooks that are screwed into rafters and have a protruding external under tile arm/hook that holds the aluminium channels top and bottom of the panels on the roof. See the manual for a full description.
Panel Specifications
| Dual Header OKU Panel | Specifications |
|---|---|
| Gross Area (as mounted) | 1.2 m² |
| Aperture Area (black area) | 1.1 m² |
| Panel Edge to edge length | 1370 mm |
| As mounted Edge to edge Length | 1400 mm |
| Panel Pipe to pipe width | 845 mm |
| Absorber edge to edge width | 824 mm |
| Dual Header Pipe OD | 40 mm metric |
| Interconnect Pipe OD | 25 mm metric |
| Flow rate range | 2–10 L/min/m² |
| Water content | ~6 L |
| Panel Weight | 6 kg (or 12 kg with water) |
| Recommended working pressure | -1 to 1 psi |
| Frost resistant | −20 to +115 °C |
| Certifications | SRCC |
Roof fixing
Wind Loading Considerations
In terms of wind loadings on panels our roof fixing methodology is the highest in its class up to wind region C. See the manual for a full description. We like to take a cautious over-engineered approach to wind loadings and suggest installers do the same as it's very easy to put down more fixings. However, there are some cases where we can't recommend panels over tubes due to high wind loadings (if in doubt please ask). As a guide please note the following recommendations:
| Wind Region | Single Storey Metal Roof | Single Storey Tile Roof | Double Storey Metal | Double Storey Tile |
|---|---|---|---|---|
| Wind Region A | ✓Okay | ✓Okay | ✓Okay | ✓Okay |
| Wind Region B | ✓Okay | Sheltered Location Only | ✓Okay | ✗Not Recommended |
| Wind Region C | Sheltered Location Only | ✗Not Recommended | ✗Not Recommended | ✗Not Recommended |
| Wind Region D | ✗Not Recommended | ✗Not Recommended | ✗Not Recommended | ✗Not Recommended |
Before you buy
Safety Requirements and Product Limitations
- Warning: Due to the potential of falling from heights, mounting the solar panels on a roof or structure at heights should only be undertaken by a professional solar panel installer, unless you are accustomed to and confident of performing the work safely.
- For ground level collectors the installer MUST check child safety fence regulations in the relevant state. Under no circumstances should collectors be installed so as to compromise the effectiveness of a child pool or spa fence safety barrier by providing a climbable object.
- At present this collector array system is not recommended for installations in cyclonic regions C (sheltered only) or D, or on houses situated on top of hills exposed to strong winds, or on second storey (or higher) roofs due to the danger of getting up on these roofs. Installations on tiles are for Wind Region A only.
- Collectors are to be used with chlorinated (or otherwise treated) pool water ONLY. Do not use collectors to heat fresh (untreated) water due to the potential for Legionella bacteria build up.
- We recommend collectors be installed with a minimum 2 degree pitch to ensure reliable evacuation of air bubbles.
- Collectors must be installed such that they drain fully in hot weather - collectors must not be installed below the waterline of the pool.
- This booster pump system requires a suitable solar booster pump and the ability to tee the solar into a section of filter line after the filter canister.
Gallery of Parts
Gallery of Installations
FAQs
Sizing and Install Questions
What size system should I use?+
It really depends on your pool's heat loadings, your usage and your budget. For a quick size, use the quick-size calculator on our OKU automatic kits page. Alternatively, for a professional sizing try our full online sizing calculator. If you're not sure what water temperatures your system will produce during various months, use our pool water temperature simulator.
How large are the panels?+
You should budget a gross panel dimension of approx. 140cm in length and 85cm in pipe to pipe width or about 1.2m² per panel.
Can I use my existing controller and mains power pump?+
You can use your existing controller if it's in good working order - however pressure pumps that power rubber mat systems are typically too strong for these panels. Over-sizing the pump not only uses more electricity but has the potential to limit panel lifetimes due to large pressure fluctuations in the panels. EcoOnline (and OKU) only recommends typically 0.25HP to 0.5HP pumps for small 8 to 30 panel systems.
Can I use a low energy usage variable speed pump?+
No, after witnessing customers try such pumps and struggle with them our advice now is not to use them, unless they can be set to run at a constant speed without a start up surge. We find variable pumps start at full power then taper back, this puts a lot of pressure fluctuations through the panels on start up which could limit panel lifetimes. We only recommend pumps that can pump at a constant set pressure.
Do I need dedicated solar suction and return lines for this kit?+
No - that is exactly what this booster kit is for. Solar is tee'd into the filter lines after the main filter canister and returned before any auxiliary heating unit, so no dedicated solar ports are needed. The controller powers the chlorinator connected to the main filter pump and uses current detection to sense that pump, so the booster is never started on its own. If you do have dedicated solar suction and return ports, an independent system is the simpler and cheaper option. See the manual for plumbing diagrams.
Is this system easy to install for tiles?+
Installation on tiles is more difficult and we recommend it should only be attempted by experienced DIY or tradespersons.
